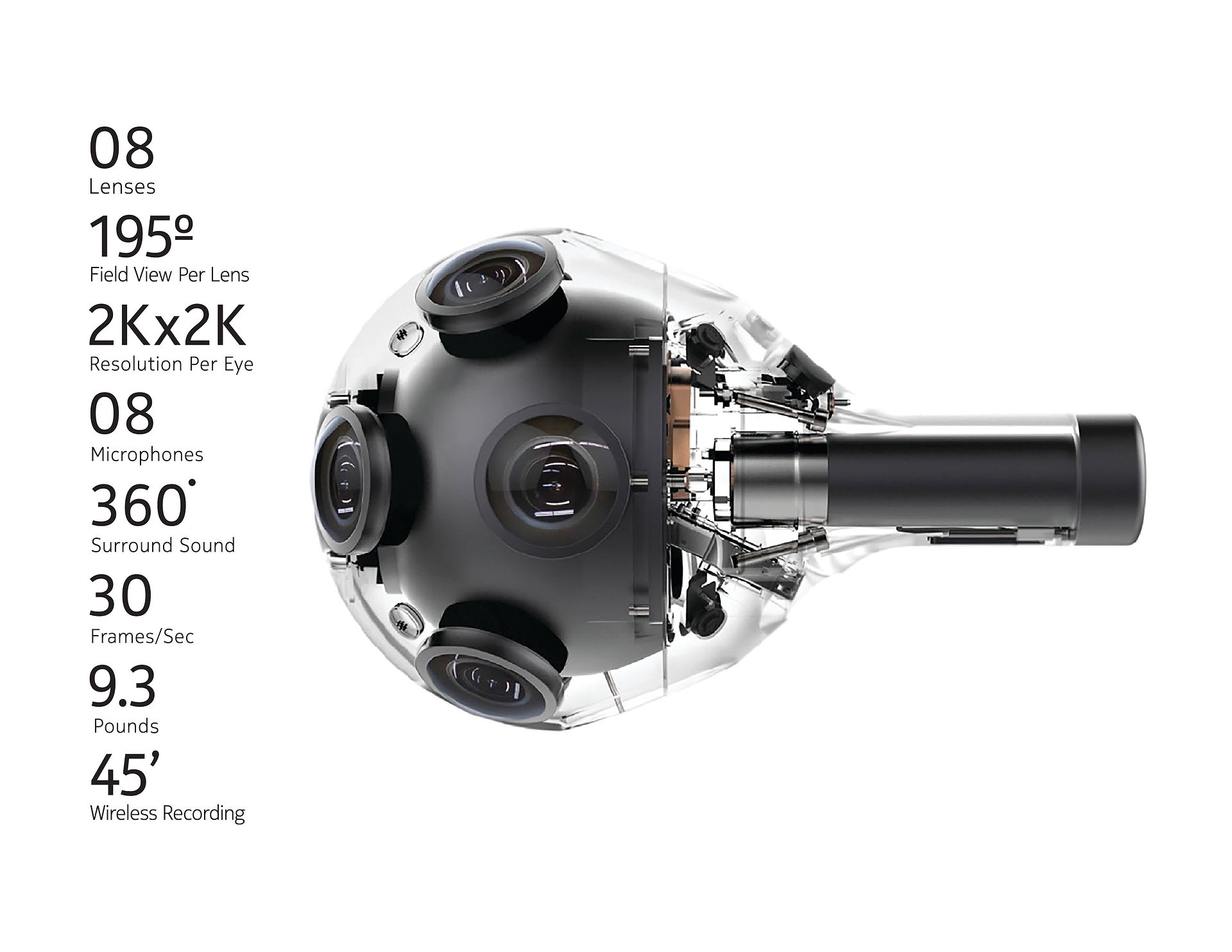

NOKIA OZO: USD45,000 Pro VR cam
Nokia has seen better days as one of the telegiants and seems to be trying to reinvent itself by going into the VR camera market that is booming in China. The camera originally sold for $60,000, with the company offering $15,000 discounts to individuals and early adopters. That discounted rate is now the retail price of the OZO at $45,000 in the US (€40,000 in Europe), with equivalent pricing expected for the China launch. The OZO is expected to go on sale in China in September of this year. The Ozo is currently available in the US and Europe. Disney recently announced that it would be using Ozo cameras for many of its 360-degree VR initiatives. The Ozo is marketed as a professional production tool similar to the Arri Alexa or RED’s line of cameras, and sees professional camera rental houses as potentially a big market for itself.
SPECIFICATIONS: Presence Capture: Spherical and Stereoscopic Video capture with Spatial Audio Array Video Sensor Type: Progressive Scan with Global Shutter
Video Sensor Array: Eight, synchronised, 2K x 2K sensors
Video Area Coverage: Full-spherical, 360 x 180 degrees
Min Imaging Distance: 0.5m / 20" (spherical video coverage)
Stereoscopic Coverage: Centerline +/- 130(h), +/- 65(v) degrees
Lens Interoptic Distance: Effective max. 86 mm / 3.4"
Lens Angle of View: 195 degrees per lens
Relative Aperture: f/2.4
Video Dynamic Range: 60 dB / 10 stops
Base Color Temperature: 5,000 degrees Kelvin
Base Sensitivity: ISO 400 Audio Sensor Type: Omnidirectional, solid state
Audio Area Coverage: Full-spherical, 360 x 360 degrees
Audio Dynamic Range: 64dB S/N, 120dB max SPL
Master File Format: MOV wrapped OZO Virtual Reality with 8Ch raw Video and 8Ch PCM Audio Video Compression: Wavelet-based raw
Media Module: 500GB, Solid State Media
Record Duration: 45 min per Media Module
Program Output: 3G-SDI SMPTE 242M, DIN connector
Capture Frame Rate: 30.00 fps
Cooling System: Passive (fanless) design
Battery Pack: Rechargeable Lithium Ion
Power Consumption: 12V DC, approx 30W in record mode
OZO Remote Application: Available for OSX® 10.10 Yosemite
Camera Control: via 802.11 Wifi Monitor Output: HDMI, Stereoscopic Virtual Reality render
OZO Creator Application: Available for OSX® 10.10 Yosemite
Editorial Preview: MOV, monoscopic 360 degree panorama
DPX Output: 2K x 2K per lens x 8 lenses, 10 bit, sRGB color space
Stitched Output: DPX, stereoscopic, 3840 x 2160 per eye
Weight: 4.2kg / 9.3lbs including Battery
Construction: Milled Aluminium Alloy Color: Lava Grey
Dimensions - camera head only264 x 170 x 160mm / 10.4 x 6.7 x 6.3"
Dimensions - with camera mount264 x 170 x 238mm / 10.4 x 6.7 x 9.4"
Planned CertificationsCE, FCC Part 15 Class B Operating Temperature0C to +25C (+32F to +77F)
Storage Temperature-40C to +50C (-4F to +122F)
