GX7 Modulus Recon MKII gun camera project
- Sep 9, 2016
- 2 min read
After channeling much inspiration from the russian dude who built his camera gun out of a Dragunov/Tigr sniper rifle buttstock. I decided to find a cheaper way to build mine and make it look way cooler. The problem is a polymer Tigr buttstock costs RM800 (not counting the other add-on parts), A Bushhawk costs RM1000K+ and the Sharpshooter costs RM1,200. I needed a cheaper solution that would be a fun project and where I had a say in the look and ergonomics. Another problem in a lot of the other more expensive systems, the camera sits high above the trigger and stock assembly and it doesn't look right. I wanted to place the camera within the gun and make it a part of the gun. Why NERF? It is the go to toy gun for Hollywood propmasters, After the kiddy garish colours are painted over in gun metal and weathered this will make it WAY MORE BADASS than the mother of all gun camera platforms, the KGB Fotosnaiper! Anyway this is my progress thus far, this was an old NERF gun I used to fool around at my old NST office. Another issue was adding on weight, with commercial setups made of polymer I'd still be adding some weight unlike the superlight NERF! Tools 1 longass philips head screwdriver (don't ask me the size) 1 Tactix box cutter knife 1 spray can matt black paint 1 spray can silver paint for weathering 1 Soteck PVC Tube saw 1 sharpie marker pen to mark out cut points 1 Tactix heavy duty scissors Cable ties of various sizes I have gotten the seating of the camera just right, the viewfinder lines up great to my right eye (sniper rifle eyecup extender to be added in future) and will make sense to add a sniper cheekpad on the rear adjustable stock. Another reason I chose the Recon MKII is that a regular M4 stock can work with its stock tube. But for the moment am going with the NERF's original stock. Tomorrow I will paint it up to match my GX7. My shutter trigger will be a JJC I'm gonna rig up to the guns trigger then add in picatinny rail slots below for a foregrip and a top rail for a manfrotto R232 to hook up to the camera where i've cut out the plastic from the original body. iShoot adapter rail system is ziptied to gun body and an Andoer quick detach tripod mount went on that completing the setup. I went with the Andoer finally over the more expensive Manfrotto R323. A then got a Tac Vector Optics 38mm scope eye cup so that I don't have to lean towards the EVF but bring the EVF to me. PROJECT COMPLETION DATE: 10/10/16 COMPLETED GUN CAM BELOW

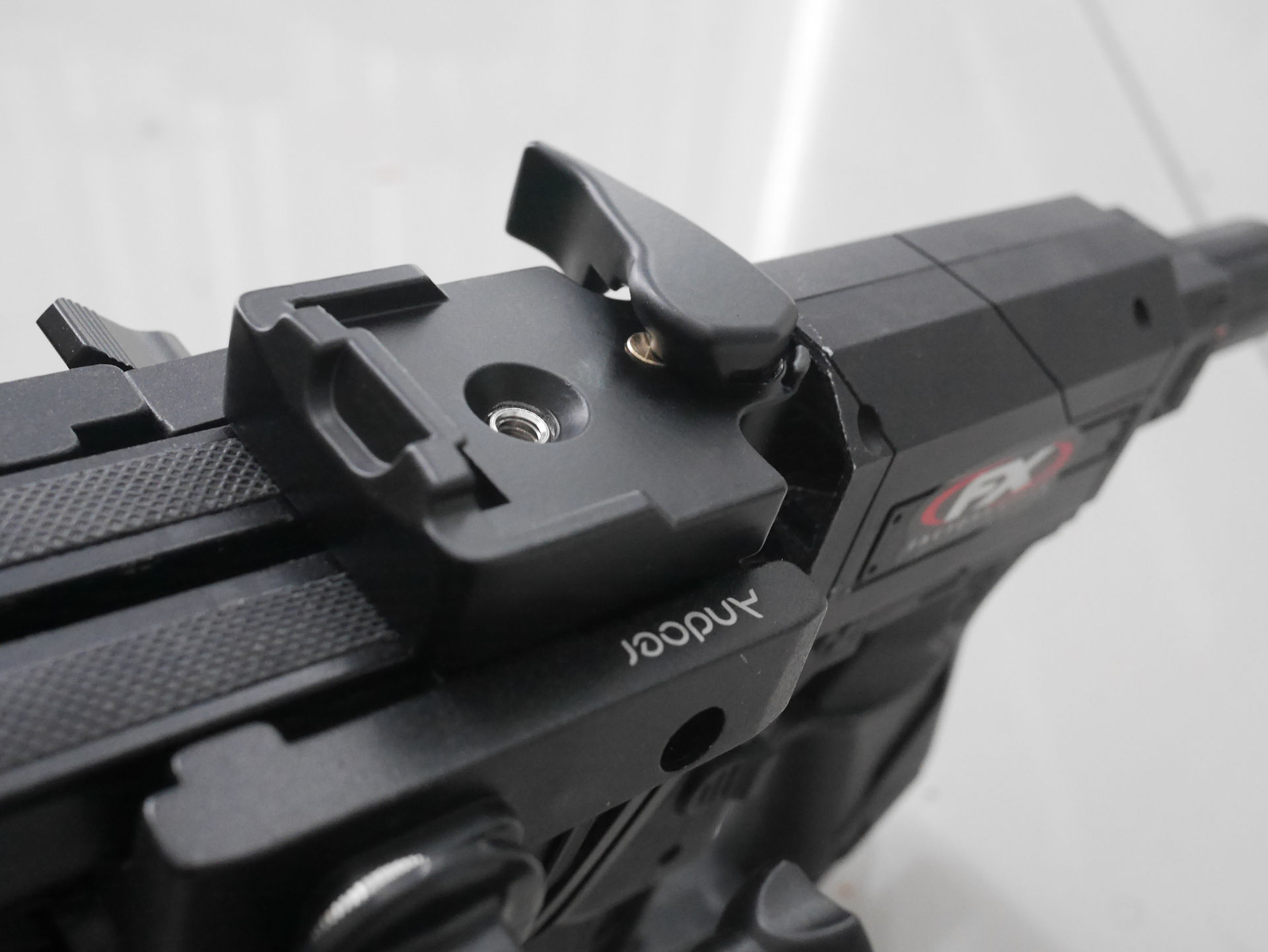

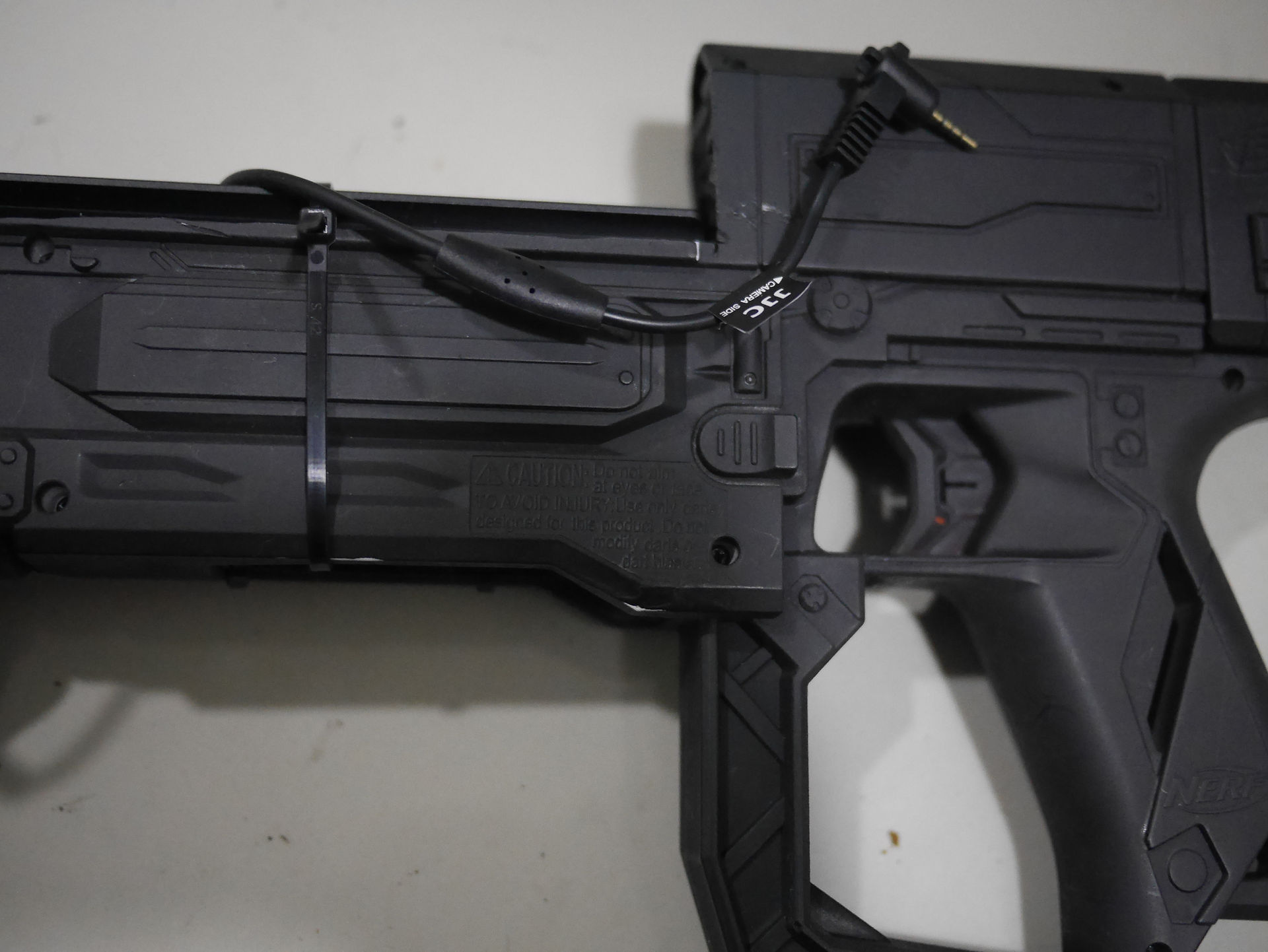

Project Expenditure: NERF GUN (Pre-owned) - RM169 (Toys R Us) iShoot Quick Release plate QS-220 - RM179.42 (Free shipping from HK) JJC pistol shutter trigger - RM146.61 (Inclusive shipping) Andoer quick release tripod adapter - RM53.65 Tac Vector Optics 38mm sniper scope eyecup - RM16.67 Chinese Manfrotto R323 type quick detach adapter - RM30.50 (Free Shipping China)
Mini Tripod - RM5.06 (Free shipping from HK)
14707879_1152085378162334_2606867062506037960_o 15310231_2034126956907301_1661131925_n P1280513 P1280508 P1280511 P1280510 P1280509 P1280512 P1280517 P1280521 55a51156-f752-477f-91e2-a2c5bac4764b a5789f23-508f-4c0d-9053-249c271d0a8a P1230920 P1230919 P1230918 P1230914 P1230913 P1230906 P1230910 P1230908 P1230887 P1230896 P1230905 P1230900 P1230901 bdae94da-e4d3-4420-becc-0265c08e71c5_1.6b3ae625fa7a70d4b7d371534ad90103 7690b25f-bcb9-4f84-944b-d44b6fb0689d F4LY09OIK2V0QTV.MEDIUM cd720b4d-326b-4eab-810c-d033e574e248 693a3d94-baa7-4d5a-ba87-7a357646d46f e8664522-28e3-4a50-961e-8e85956d6967 6225a104-d3a6-47db-9761-5a096686a5aa f03530bf-831a-4d71-8261-a6f4b204ed35 0eed778d-553c-4efe-9982-cdd11a637a80 Vector-Optics-Riflescope-Ocular-font-b-Rubber-b-font-font-b-Eye-b-font-Relief-Cover rBVaGFXS5RKALroeAAQcNNf4yoI132 NERF Mockup 3 Panasonic_DMW_ZL1_LENS_ZOOM_LEVER_14_140mm_761052 NERF Mockup 3B NERF Mockup 2 Nerf_modulus_recon_mkii 45232c62-c6c1-49df-875c-c8f1460d3a1b 262070599437_1
